In my final year of engineering, my team and I designed AeroSense, an IoT system that tackles two invisible but dangerous health issues: air pollution and sleep apnea.

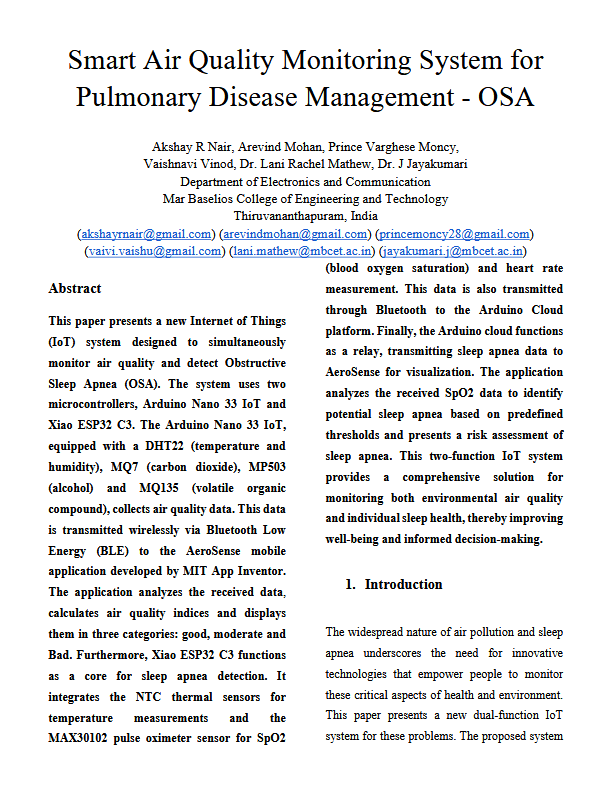

Formally presented at the 2024 IEEE Fourth International Conference on Power, Control and Computing Technologies (ICPC2T) and now published on the IEEE Xplore Digital Library.
Results
98.6% accuracy in detecting air quality & apnea events
Built for just ₹8k — far cheaper than commercial devices
Combined environmental + personal health monitoring in one system
Real-time mobile app for alerts and insights
All technical details, including testing methodology, accuracy benchmarks, and references, are documented in our research paper, accessible via this link.
📝 Project Summary
AeroSense is a low-cost, at-home device for detecting potential Obstructive Sleep Apnea (OSA) events by monitoring vitals, breathing rate, and ambient air quality. Designed for rapid screening in resource-limited contexts, it supports early diagnosis and health tracking for users at risk of apnea-related complications.
Our goal was to build a low-cost, accessible tool that empowers individuals with insights into their immediate environment and sleep health risks at the same time.
🧑🤝🧑 Role
In our 4-member team; Arevind, Vaishnavi, Prince and Myself, responsibilities were distributed across sensing, electronics, data transmission, and structural design. I focused on the Design and Fabrication of the Air Quality Monitoring Module, covering enclosure logic, sensor placement, and thermal interference reduction.
🔎 Project Framing
AeroSense is a low-cost diagnostic tool for early detection of Obstructive Sleep Apnea (OSA) in home settings — especially where lab tests are inaccessible. Existing systems = expensive, fragmented.
Key Directions:
Keep costs low without sacrificing core diagnostic accuracy
Ensure sufficient accuracy for reliable early-stage screening
Design for modular sensor expansion
Optimize for low power, small footprint
Enable local manufacturing (no proprietary dependencies)
Example: A middle-aged user with snoring issues and hypertension uses the device over several nights. Anomalies in oxygen saturation and CO₂ levels prompt a hospital visit — catching OSA risk early.
Design Goals for Air Quality Module:
Maximize strength-to-weight ratio
Minimize material and production cost
Ensure high ventilation for accurate sensing
Isolate heat-sensitive sensors from interference
Support modular expansion
Maintain compact, bedside-suitable form factor
🧩 Form Development:

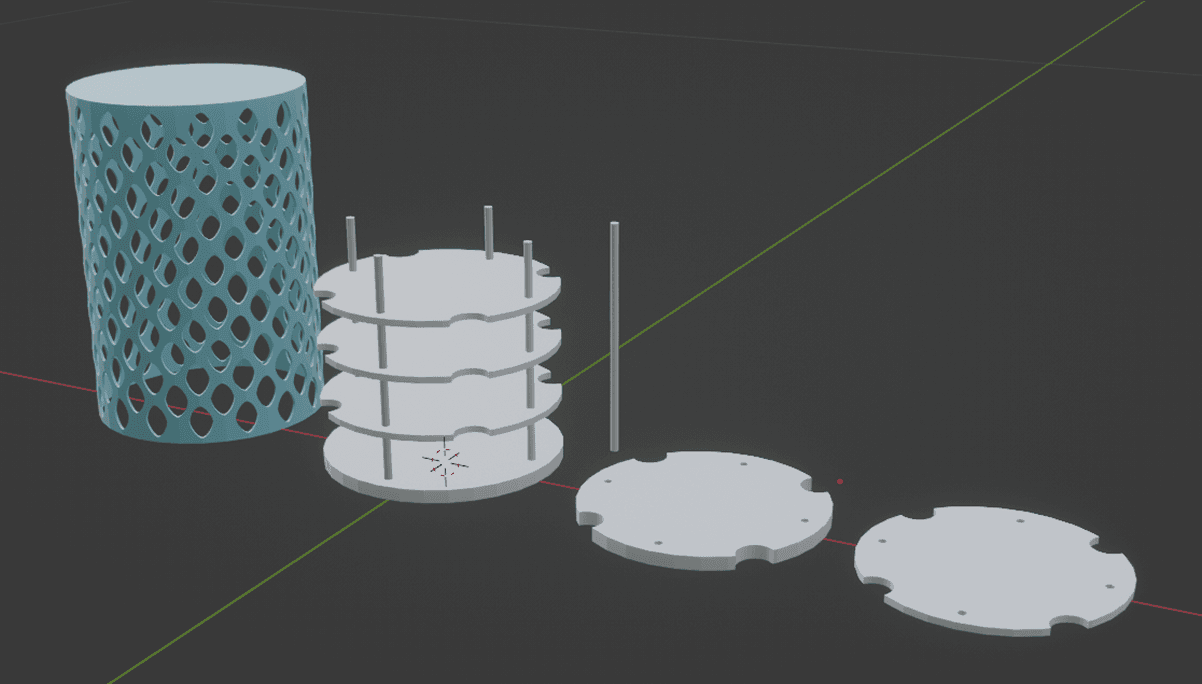

Initial sketches explored horizontal vs. vertical stacking. Final concept adopted a tower-based structure to promote airflow, isolate sensing zones, and minimize footprint.
To balance cost and strength, a honeycomb lattice shell was implemented — offering material efficiency and rigidity. All parts were designed (in AutoCAD) for 3D printing using PLA.
We tested out the final product and found the readings to be great. There weren’t any heat bleed which was one of our main concern.
The alert and status interface was developed using MIT App Inventor, prioritizing functionality over visual polish.
⚖️ Impact
The project pushed us to learn beyond our core domains and work as a tightly aligned team. We later conducted seminars for juniors, sharing our process, design decisions, and learnings from building the system from scratch.
All technical details, including testing methodology, accuracy benchmarks, and references, are documented in our research paper, accessible via this link.
